TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920

Name: TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920
Brand: Floin Valves and Instruments
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920 Specification

Connectivity Type
Mechanical connection (process connection only)

Usage & Applications
Continuous level monitoring in atmospheric or pressurized tanks

Display
Transparent glass tube, direct reading type

Features
Transparent glass tube, tie rod reinforced, leak proof, easy maintenance, corrosion resistant

Installation Type
Flanged or Screwed ends

Measuring Range
Customizable, generally up to 2 meters

IP Rating
IP54 (with optional accessories)

Protection Level
Basic mechanical protection, up to IP54 with accessories

Sensor Type
None (mechanical visual gauge)

Output
Visual

Mounting Type
Side or end mounted to tank

Product Type
LEVEL GAUGE

Operating Temperature
Up to 100C (standard), higher ranges available on request

Working Temperature
-10C to +100C

Input
Direct visual indication of liquid level

Pressure Type
Atmospheric to medium pressure (up to 10 kg/cm2 standard)

Diameter
Typically 16 mm to 20 mm (glass tube)

Application
Petroleum, chemical, pharmaceuticals, and other industrial tanks

Accuracy
2 mm or better depending on installation

Dimension (L*W*H)
Length customizable as per tank height; width approx. 60 mm

Weight
Varies by length, approx. 2-5 kg

Packing Material
PTFE or equivalent chemical-resistant material

Scale Marking
Graduated scale available on request

Shipping Dimensions
Depends on length (packaged to customer requirements)

Test Pressure
1.5 times the maximum working pressure

Maximum Working Pressure
10 kg/cm2 (higher on request)

Shut Off Valve
Integral ball or needle isolation valves provided

Glass Protection
Tie rods and guard rods for extra safety

Compliance
Meets relevant IS/ASTM standards

Drain/Vent Connection
Available for maintenance and cleaning

Maintenance
Minimal; glass tube easily replaceable

Service Life
Typically over 5 years under normal conditions

Material of Wetted Parts
Borosilicate glass, Stainless Steel (SS304/SS316)

End Connections
Flanged (ANSI, DIN, JIS), screwed (BSP/NPT) options

TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
50 Week

About TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920

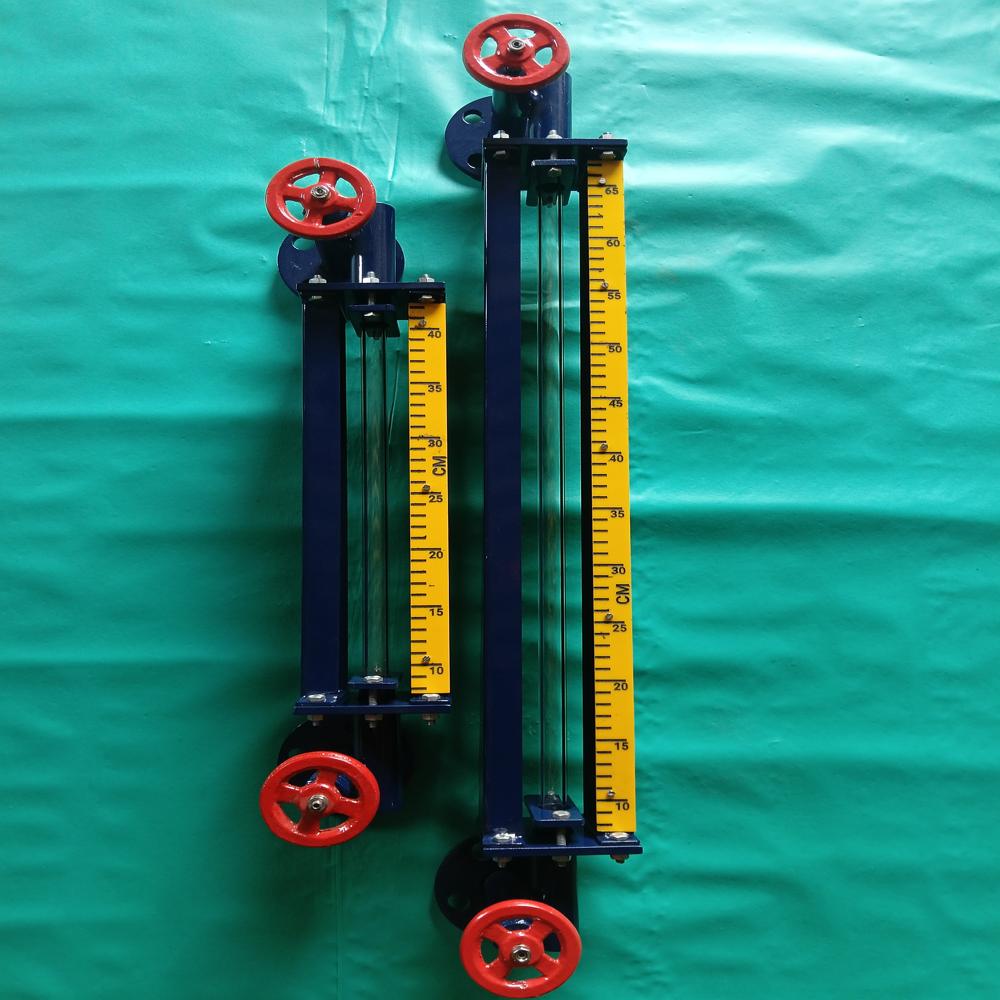

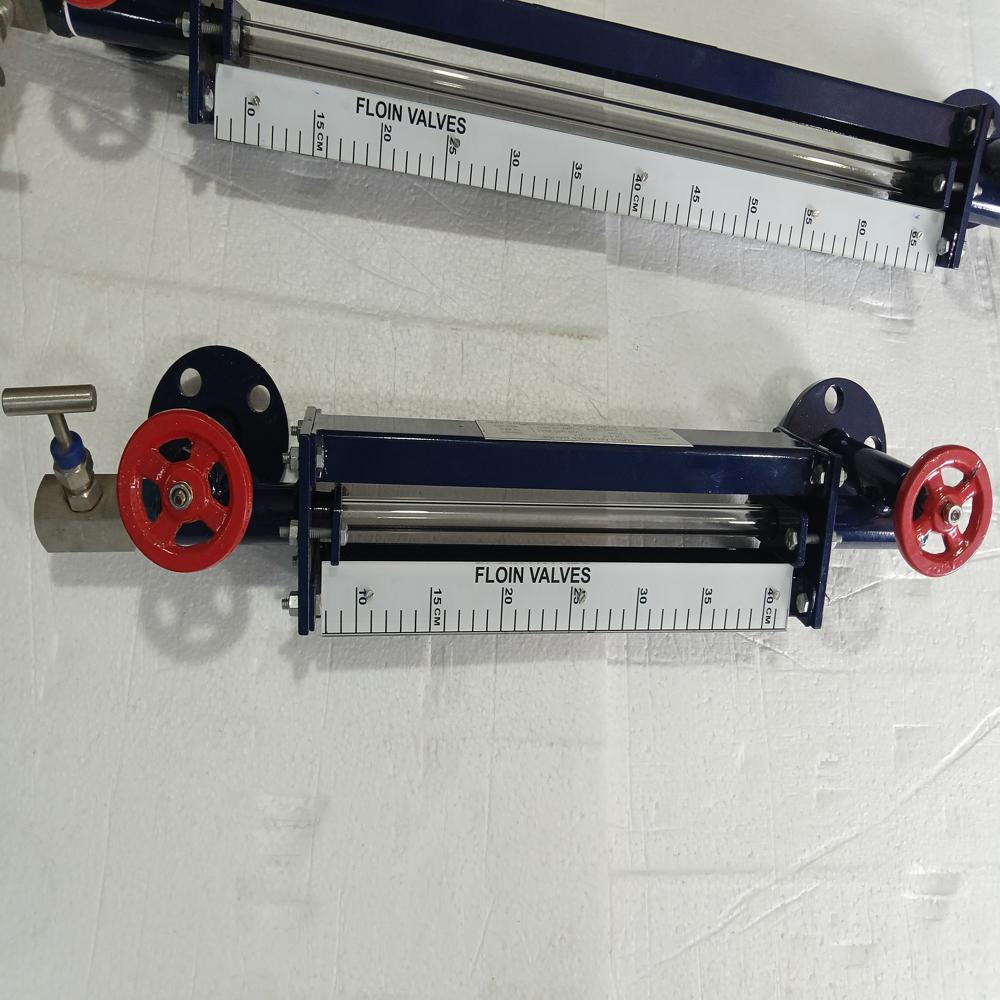

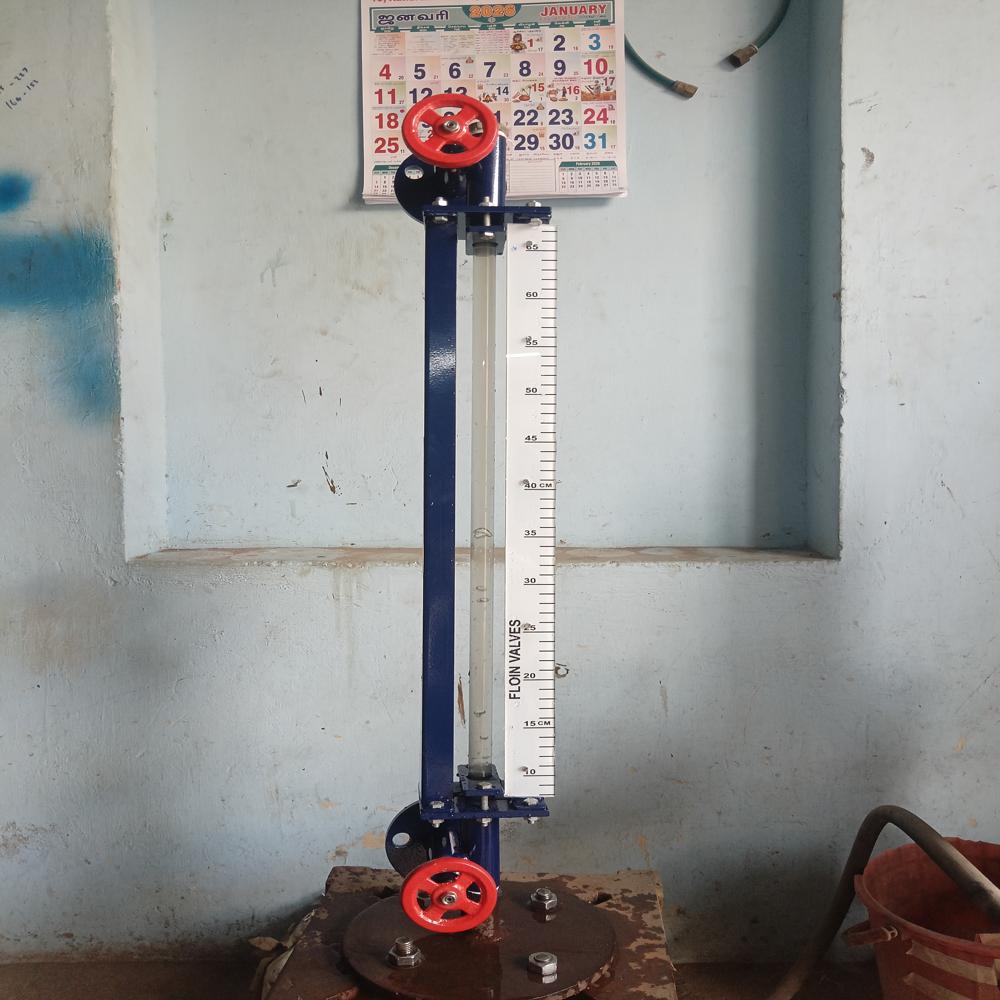

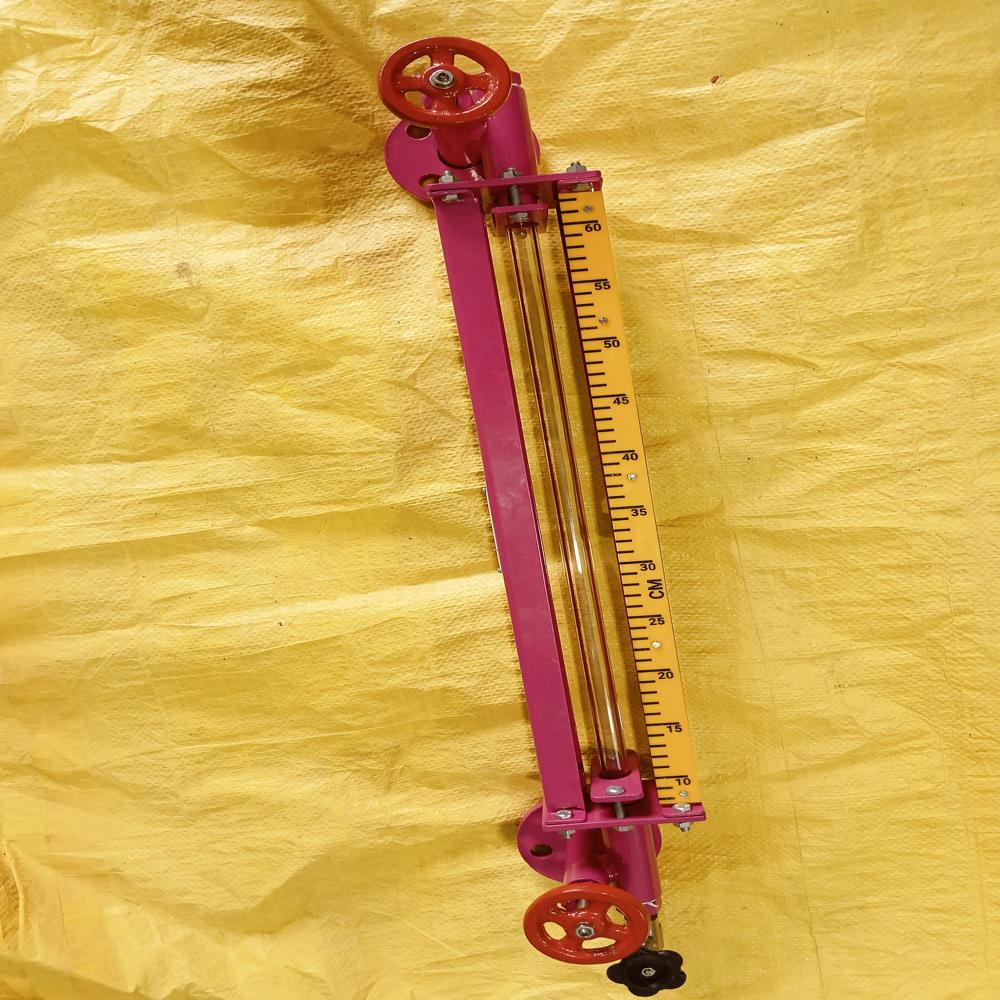

The tubular level gauge is assembled firmly with heavy toughened borosilicate glass with tie rods. Tubular Level Gauge is direct indication of liquid level in a vessel. The level of liquid inside the glass tube is same as the liquid level in the tank.

Enhanced Durability & Safety

The TLG920's construction features borosilicate glass and stainless steel (SS304/SS316), providing high resistance to chemicals and pressure. Safety is enhanced by tie rods and guard rods, thoroughly protecting the glass tube. A robust packing system using PTFE ensures leakproof performance even under varying temperatures and pressures, making this level gauge ideal for demanding industrial environments.

Versatile Installation & Customization

This tubular level gauge supports flanged (ANSI, DIN, JIS) and screwed (BSP/NPT) process connections, with a customizable length up to 2 meters and mounting on the tank's side or end. It fits seamlessly into diverse tank setups, making it suitable for petroleum, chemical, and pharmaceutical industries. Graduated scale marking and various end connections can be requested according to your application needs.

Easy Maintenance & Longevity

Minimal upkeep is required for the TLG920. Maintenance is straightforward thanks to a design that allows quick replacement of the glass tube and accessible drain/vent connections for cleaning. With a typical service life exceeding five years under normal use, the gauge's reliable performance reduces downtime and maintains an accurate, direct view of liquid levels in the tank.

FAQ's of TUBULAR LEVEL GAUGE-WITH TIE ROD-TLG920:

Q: How is the TLG920 tubular level gauge installed?

A: The TLG920 gauge is installed either side-mounted or end-mounted on the tank using flanged (ANSI, DIN, JIS) or screwed (BSP/NPT) end connections. Installation type and connection standard can be tailored to your tank's requirements.

Q: What materials are used in the wetted parts of this gauge?

A: The wetted parts are made from high-quality borosilicate glass and stainless steel (SS304 or SS316), ensuring resistance to corrosion and chemical attack for reliable operation in various industrial applications.

Q: Where can this level gauge be used?

A: This gauge is suitable for a broad range of industries including petroleum, chemicals, and pharmaceuticals, and can be used in tanks subjected to atmospheric or medium pressures. Its adaptability makes it suitable for most industrial liquid storage and processing tanks.

Q: What maintenance does the TLG920 require and how is it performed?

A: Maintenance for the TLG920 is minimal; the glass tube can be easily replaced if needed. Regular inspection and cleaning through provided drain/vent connections ensure reliable performance. PTFE packing also extends the maintenance intervals by preventing leaks.

Q: What are the key benefits of using the TLG920 gauge?

A: Key benefits include direct, accurate visual level indication, robust chemical and pressure resistance, enhanced glass tube safety via tie rods, leakproof design, easy maintenance, and customization for different tank configurations and media.

Q: When should the glass tube or packing be replaced?

A: The glass tube or packing should be replaced if there are signs of wear, damage, or leakage. Under typical operating conditions, they last several years, but periodic inspections ensure optimal performance and longevity.

Q: How is the level reading displayed to the user?

A: The liquid level is shown directly through the transparent borosilicate glass tube. Optional graduated scales can be provided for more precise measurement, allowing users to easily monitor and record tank levels visually.
