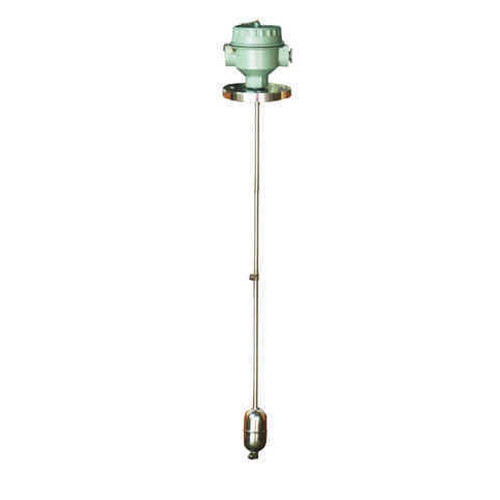

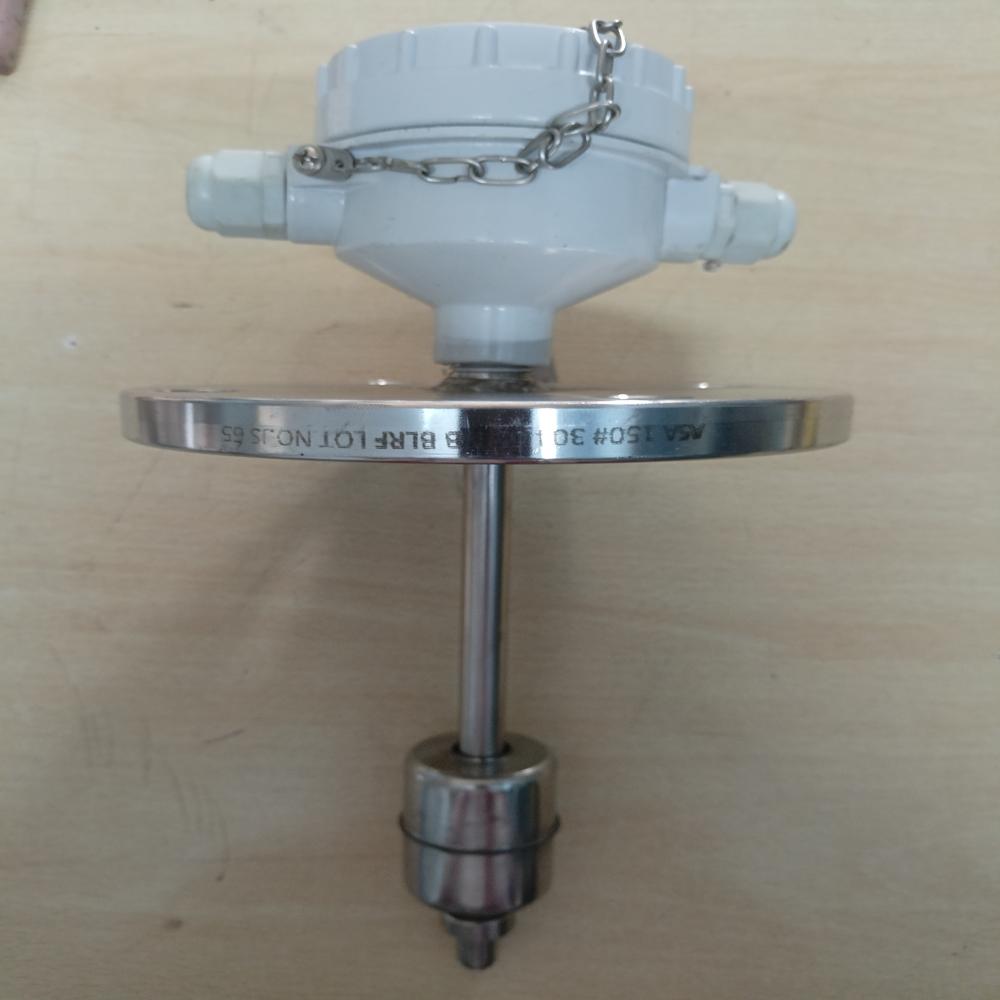

TOP MOUNT LEVEL SWITCH-TML 1010

Name: TOP MOUNT LEVEL SWITCH-TML 1010
Brand: Floin Valves and Instruments
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

TOP MOUNT LEVEL SWITCH-TML 1010 Specification

Output
SPST/DPDT Contacts

Switch Type
Magnet Operated Reed Switch

Measuring Range
Up to 5000 mm (customizable)

IP Rating
IP65 (WP), IP66/IP67 (FP optional)

Sensor Type
Reed Switch

Current
Up to 1A

Pole Type
Single/Double Pole

Features
Corrosion Resistant, Maintenance Free, Sturdy SS 304/316 Construction

Usage & Applications
Water Level, Oil Level, Diesel, Chemicals, Acidic or Alkaline Liquids

Display
No integrated display

Phase
Single Phase

Mounting Type
Top Mount Flange or Thread

Frequency
50/60 Hz (switching frequency depends on relay circuit)

Installation Type
Top Mount

Protection Level
Weather Proof/WP, Flame Proof/FP (optional)

Connectivity Type
Wire Lead

Product Type
Top Mount Level Switch

Operating Temperature
-10C to +80C

Working Temperature
-10C to +80C

Input
Mechanical Float Actuation

Pressure Type
Max 5 kg/cm2

Diameter
Mounting Flange: 2 BSP (customizable)

Application
Liquid Level Sensing in Tanks, Vessels, Industrial Process, Chemical, Water Treatment

Supply Voltage
230V AC/24V DC max (as per relay load)

Accuracy
10 mm

Dimension (L*W*H)
Custom lengths, typically Tube dia. 19/25mm x Height as per tank (overall length as per requirement)

Weight
Approx. 1.5 kg (varies as per length)

Maximum Switch Rating
60W/50VA

Float Material
SS 316/PP

Response Time
Instantaneous on float movement

Float Size
38mm x 53mm (standard, customizable)

Enclosure Type
Weatherproof/Flameproof (Aluminium Die Cast, SS Enclosures optional)

Flange Material
Stainless Steel 304/316, PP (options available)

Minimum Order Quantity
1 Piece

Ambient Temperature
-10C to +55C

Number of Switch Points
Up to 5 (multiple point level detection)

Process Connection
Screwed/Flanged Mounting

Cable Entry
3/4" ET/NPT

Contact Resistance
<100 m

TOP MOUNT LEVEL SWITCH-TML 1010 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
15 Days

About TOP MOUNT LEVEL SWITCH-TML 1010

Top Mounted Level Switch is monitors the liquid level in a tank and sends a trip signal to another device such as a Pump to protect it. These Level Switches are used for Pump protection, Cooling Circuit protection, high & low level signal and general level monitoring.

Versatile Material Choices

The TML 1010 level switch offers flange and float options in Stainless Steel 304/316 or Polypropylene (PP), allowing you to select corrosion-resistant constructions for challenging chemical, water, or oil applications. This versatility enhances its suitability for a wide range of industries.

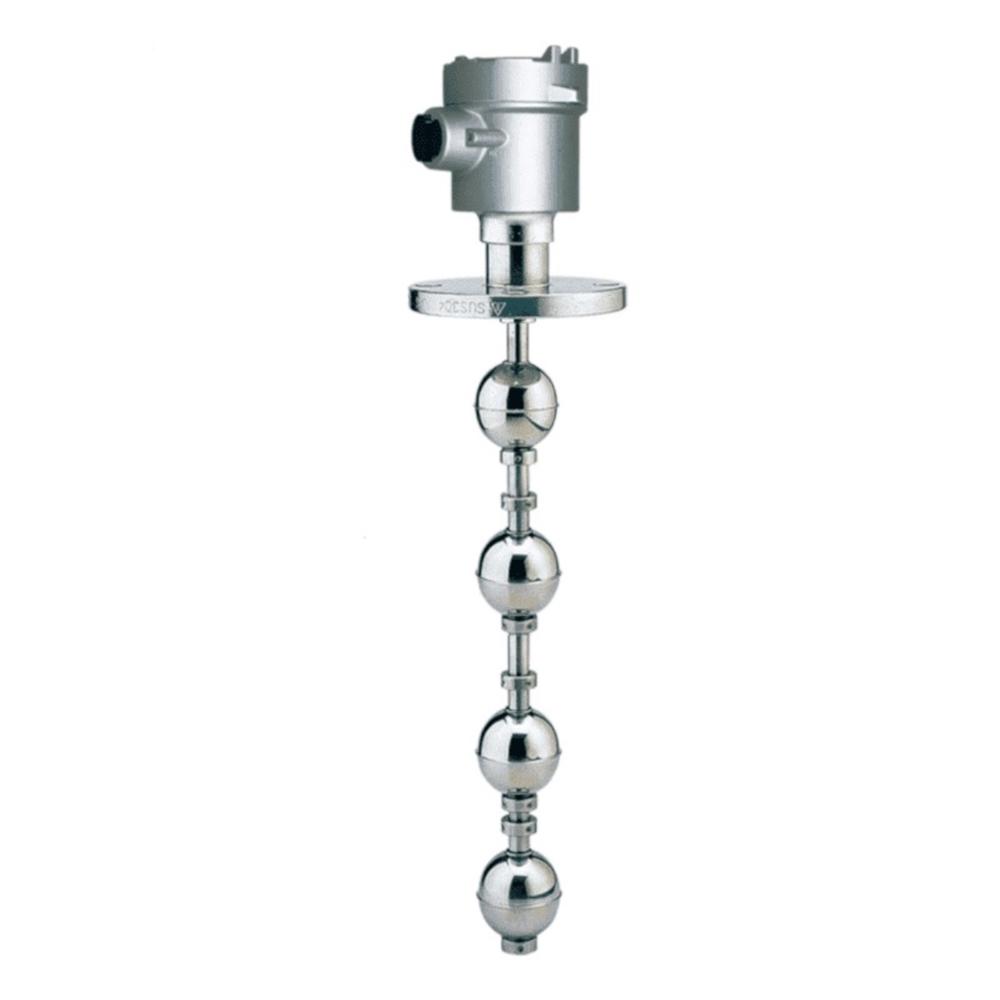

Multiple Point Level Detection

With the ability to integrate up to five switch points, you can monitor several liquid levels within a single tank. This capability streamlines level sensing needs for complicated process requirements or inventory management, reducing system complexity and installation costs.

Durable and Safe Enclosures

Choose between weatherproof and flameproof enclosures, including aluminium die-cast or stainless steel options. The TML 1010 ensures reliable operation in hazardous or exposed environments, making it ideal for chemical, water treatment, and industrial processing facilities.

FAQ's of TOP MOUNT LEVEL SWITCH-TML 1010:

Q: How does the TOP MOUNT LEVEL SWITCH-TML 1010 detect liquid levels in tanks?

A: The TML 1010 utilizes magnet-operated reed switches within a tube. As the float, which is guided along the tube, rises or falls with the liquid, it actuates these switches, providing accurate and instantaneous indication of the liquid's level at predefined points.

Q: What are the primary benefits of using SS 304/316 or PP materials for the float and flange?

A: Stainless Steel 304/316 offers excellent corrosion resistance and durability for harsh or aggressive liquids, while Polypropylene (PP) is suitable for lighter chemicals or cost-sensitive applications. Selecting the right material extends the sensor's service life and ensures reliable operation in specific environments.

Q: When should I choose a flameproof enclosure for my level switch installation?

A: Flameproof enclosures (aluminium or SS) are recommended in hazardous areas, such as those with flammable gases or vapors, to prevent potential ignition from electrical components. For standard environments, the weatherproof version provides suitable protection.

Q: Where can the TML 1010 be installed, and what mounting options are available?

A: This level switch is designed for top mounting on tanks and vessels using either flanged or screwed (threaded) connections. The standard mounting flange diameter is 2 BSP, but custom sizes are available to suit your requirements.

Q: What is the typical process for customizing the level switch length or switch points?

A: Customization is available for overall length (up to 5000mm) and the number of switch points (up to 5). During ordering, specify your tank height, desired measurement levels, and process connection type. The manufacturer will then tailor the assembly to your exact specifications.

Q: Is the TML 1010 suitable for media like water, diesel, or chemicals?

A: Yes, this switch is engineered for broad media compatibility, including water, oil, diesel, chemicals, acids, and alkaline liquids. Careful selection of float and flange materials ensures safe use in each specific application.

Q: What make this level switch maintenance free and reliable for industrial use?

A: The non-contact reed switch technology ensures there are no moving electrical parts inside the wetted area, reducing wear and the need for frequent maintenance. Corrosion-resistant components and sturdy build further contribute to long service life and reliability.
