FLOAT AND BOARD LEVEL INDICATOR-FCL 960

Name: FLOAT AND BOARD LEVEL INDICATOR-FCL 960
Brand: Floin Valves and Instruments
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

FLOAT AND BOARD LEVEL INDICATOR-FCL 960 Specification

IP Rating
IP55

Display
Direct Reading with Board and Pointer

Measuring Range
Up to 15 meters (customizable)

Mounting Type
Flange or Bracket

Output
Visual/Mechanical

Sensor Type
Magnetic Float

Connectivity Type
Mechanical linkage

Installation Type
Top Mounting

Pole Type
Single Float with Board

Features
Corrosion Resistant, Low Maintenance, Simple Construction, No Power Supply Needed

Usage & Applications
Industrial, Chemical, Water Treatment, Storage Tanks

Protection Level
Suitable for use in outdoor/industrial environment

Product Type
FLOAT AND BOARD LEVEL INDICATOR

Operating Temperature
-10C to +80C

Working Temperature
-10C to +80C

Pressure Type
Atmospheric

Diameter
Float: 100 mm - 150 mm (approx)

Application
Level Measurement in Water Tanks, Chemicals, Oil, and Industrial Liquids

Supply Voltage
Not Required (mechanical operation)

Accuracy
10 mm

Dimension (L*W*H)
Variable as per tank size

Weight
Approx. 8-15 kg depending on length

Material
Carbon Steel/Aluminium/Customized

Operating Pressure
Atmospheric to 1 kg/cm2

Rope Type
Stainless Steel Wire Rope or PVC coated (as per application)

Maximum Fluid Specific Gravity
0.6 to 1.5

Float Material
SS 304/316 or Polypropylene (as per application)

Scale Material
Aluminum powder coated or Stainless Steel

Fluid Compatibility
Water, Diesel, Acids, and Chemicals

Reading System
Graduated Board with Magnetic Follower

Tank Height Compatibility
Customizable from 1m to 16m

Accessories Included
Pulley, Scale, Float, Wire Rope, Counterweight

End Connections
Flanged/Coupler as per requirement

Corrosion Resistance
Yes, suitable for most chemicals

Pointer Material
Aluminum or Stainless Steel

FLOAT AND BOARD LEVEL INDICATOR-FCL 960 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash Advance (CA), Cheque

Delivery Time
5 Week

Main Domestic Market
All India

Certifications
ISO CE

About FLOAT AND BOARD LEVEL INDICATOR-FCL 960

Float and Board Level Indicator is a mechanical float operated level Indicator that gives measurement of liquid level. Perfectly aligned guide wire, pulley and scale. Ideal for outdoor Installation.

Efficient Mechanical Level Measurement

The FCL 960 indicator employs a mechanical system utilizing a float, pulley, and graduated board to provide real-time direct readings of fluid levels. With its magnetic pointer and durable components, it guarantees visibility and accuracy without the need for electricity or complex electronics.

Customizable Configurations for Versatile Environments

Whether used in water treatment, chemical processing, or industrial storage tanks, the FCL 960 adapts to various applications. The float, scale, and board materials can be tailored to withstand challenging fluids and environmental conditions, ensuring optimal performance in both indoor and outdoor installations.

Durability and Low Maintenance Simplified

Made from corrosion-resistant materials like SS 304/316 and powder-coated aluminum, the FCL 960 is easy to install and maintain. Its mechanical construction reduces downtime and maintenance costs, while the IP55 rating ensures reliable operation in demanding industrial environments.

FAQ's of FLOAT AND BOARD LEVEL INDICATOR-FCL 960:

Q: How is the FLOAT AND BOARD LEVEL INDICATOR-FCL 960 installed?

A: The FCL 960 is typically top-mounted on storage tanks using either a flange or bracket. All essential accessories-including the pulley, float, wire rope, and counterweight-are provided for straightforward mechanical installation without the need for electrical connections.

Q: What types of fluids can the FCL 960 measure levels in?

A: This indicator is designed for compatibility with water, diesel, various oils, acids, and a wide range of chemicals, owing to its corrosion-resistant components and adaptable material options for the float and scale.

Q: When should I choose a stainless steel or polypropylene float?

A: Stainless steel floats (SS 304/316) are ideal for aggressive or corrosive chemicals and high-density fluids, while polypropylene floats suit lighter or less corrosive liquids. The choice should match the application and fluid properties for optimal longevity.

Q: Where can the FCL 960 be used effectively?

A: The FCL 960 is suitable for installation in industrial, chemical, wastewater treatment, and storage tank applications, both indoors and outdoors, due to its rugged construction and IP55 protection rating.

Q: What benefits does a mechanical level indicator provide over electronic systems?

A: Mechanical level indicators like the FCL 960 require no power supply, are simpler to maintain, and are highly durable in aggressive environments. They provide direct, reliable readings without dependency on electronic components or supply voltage.

Q: How does the reading system operate on the FCL 960?

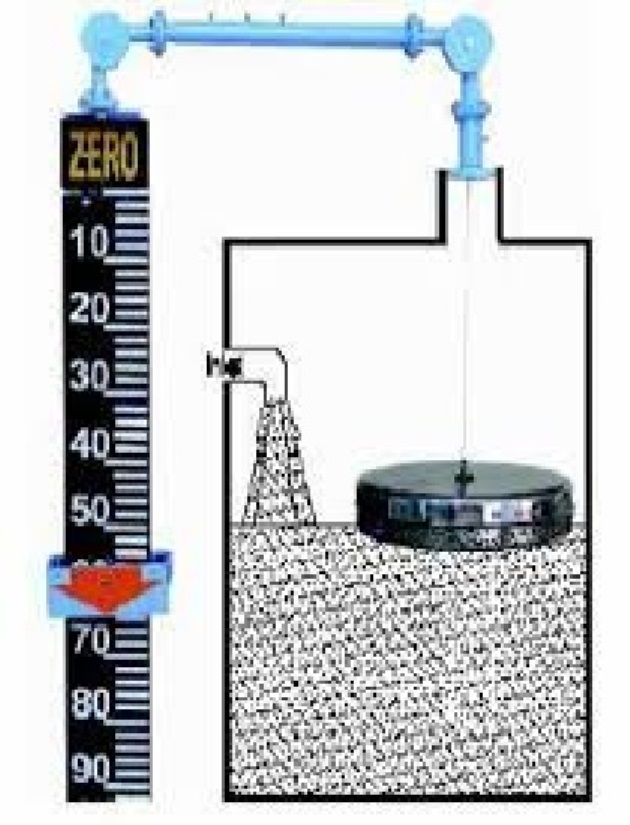

A: As the float rises or falls with liquid levels, the wire rope moves the pointer along a graduated board. The magnetic follower ensures smooth, visible readings on the board for quick level assessment at a glance.
