DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110

Name: DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110
Brand: Floin Valves and Instruments
Price: 3500.0 INR
Availability: InStock

Price 3500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110 Specification

Usage & Applications
Ideal for monitoring flow of liquids in pipelines

Features
Double window construction for visual inspection; robust iron, steel, or stainless steel body; suitable for steam, condensate, and corrosive pipelines

Measuring Range
Visual inspection only

Installation Type
Flanged, inline

Connectivity Type
Flanged ends

Mounting Type
Horizontal / vertical

Display
Mechanical visual (double window)

Output
Visual flow indication

Product Type
SIGHT FLOW INDICATOR

Operating Temperature
Up to 180C

Working Temperature
Up to 180C

Input
Fluid/Process Media

Pressure Type
Operating Pressure

Diameter
15 mm to 300 mm (1/2 to 12)

Application
Process industries, chemicals, water, oil and gas, steam lines

Accuracy
Visual only (not quantitative)

Dimension (L*W*H)
Depends on flange size (customizable)

Weight
Varies by size and material

Material
CI/WCB/CF8/CF8M/Customized

Service Fluid
Suitable for water, oil, steam, gas, acids, alkalis

Body Material
Cast iron, carbon steel, or stainless steel (SS 304/316)

Finish
Rust-preventive paint or natural finish for stainless steel

Observation Windows
Two (double window design)

Pressure Rating
Up to 10 kg/cm2 (150 PSI)

End Connection
Flanged as per ANSI, DIN, or IS standards

Test Pressure
Hydrostatic tested up to 1.5 times the rated pressure

Cover Material
Matching body material or special alloys

Gasket Material
Compressed asbestos, PTFE or CAF

Flow Direction
Uni-directional or bi-directional (as specified)

Glass Type
Toughened borosilicate

DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110 Trade Information

Minimum Order Quantity
1 Number

Delivery Time
10 Week

Packaging Details
WOODEN BOX

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
ISO CE

About DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110

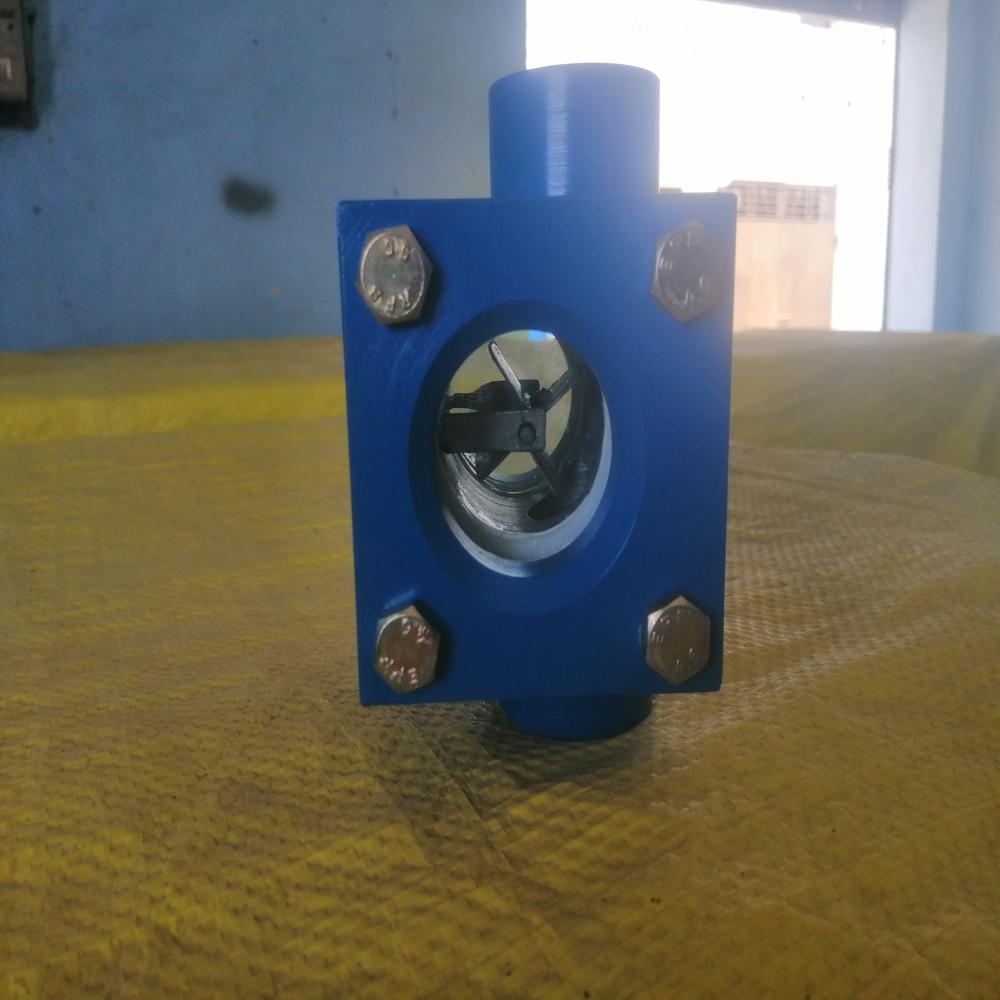

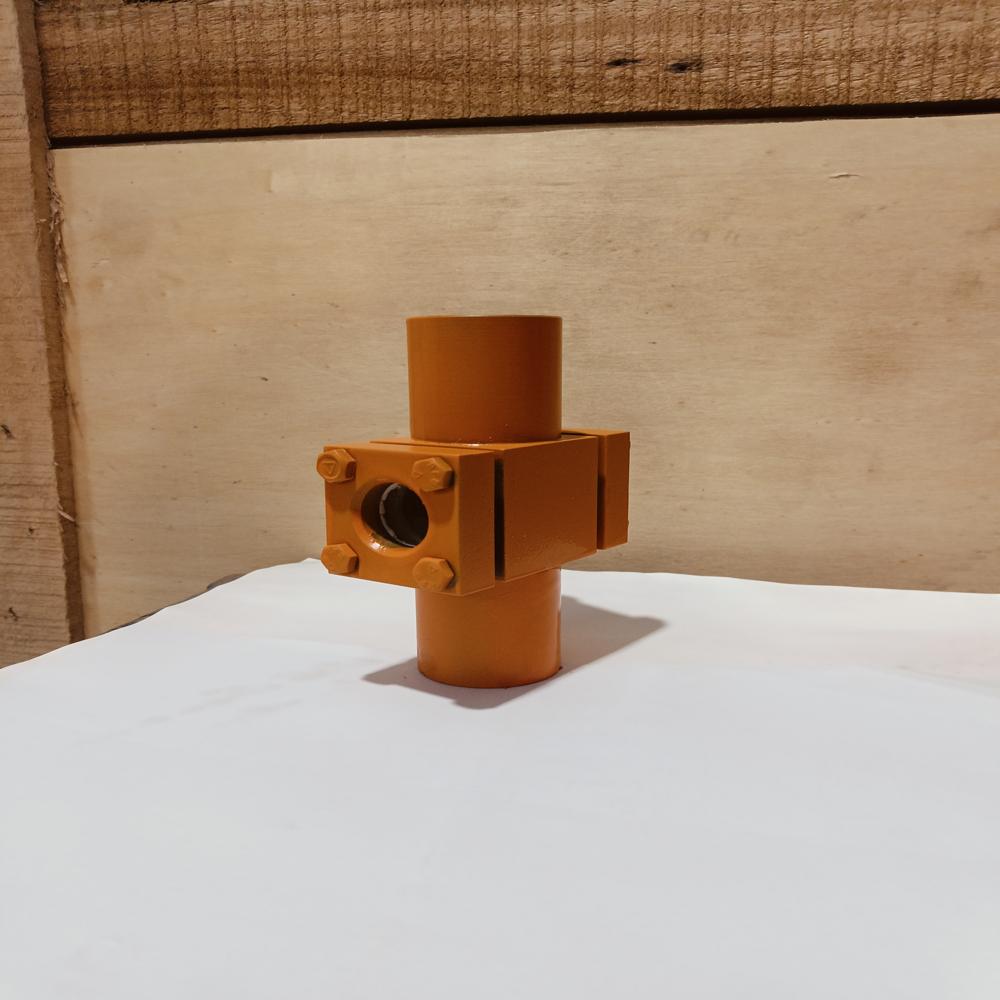

Double Window Sight Flow Indicator/Sight Glass is a simple assembly of two glasses on single cast or fabricate body at two opposite sides. Use of these type of flow indicator is for spot inspection and view of process parameter.

Enhanced Observation for Flow Verification

The SFI 110, built with double toughened borosilicate windows, offers clear visual validation of process flow within pipelines. Its dual-window design ensures observers can verify both presence and direction of fluid movement, adding an extra layer of safety in monitoring operations across industries such as chemicals, oil and gas, and water treatment.

Durable Construction, Reliable Performance

Engineered from heavy-duty materials such as cast iron, carbon steel, or stainless steel (SS304/316), the SFI 110 provides exceptional resistance to corrosion and harsh media. Its construction is suited for high-pressure and high-temperature applications, with a rust-preventive or natural finish ensuring long-lasting reliability even in challenging environments.

Versatile Installation and Broad Compatibility

Flanged connections as per ANSI, DIN, or IS standards allow for flexible integration into new or existing pipelines. The indicator supports both horizontal and vertical mounting, making it adaptable to various process requirements. Its customizable dimensions and choice of gaskets ensure compatibility with a wide range of system specifications.

FAQ's of DOUBLE WINDOW SIGHT FLOW INDICATOR-SFI 110:

Q: How does the double window design benefit the inspection process?

A: The double window design of the SFI 110 allows users to visually assess the flow from two separate viewpoints, improving observation accuracy and enabling quick confirmation of both flow presence and direction within the pipeline.

Q: What types of fluids and services is this sight flow indicator suitable for?

A: This sight flow indicator is suitable for a variety of fluids, including water, oil, steam, gas, acids, and alkalis, making it ideal for process industries such as chemicals, water treatment, oil and gas, and steam lines.

Q: When should I select bi-directional versus uni-directional flow options?

A: Choose the uni-directional option for processes where flow direction is fixed and predictable. Select the bi-directional option when fluid movement may occur in either direction, providing greater flexibility and simplicity in installation and operation.

Q: Where can this sight flow indicator be installed in a pipeline?

A: The SFI 110 can be installed inline at any point in a pipeline where visual flow inspection is needed. It accommodates both horizontal and vertical mounting orientations, and its flanged ends make it compatible with most piping systems.

Q: What is the process for installing the SFI 110 sight flow indicator?

A: Installation involves aligning the flanged ends with the pipeline, securing the unit using appropriate gasket materials (such as PTFE, CAF, or compressed asbestos), and tightening bolts to ensure a leak-proof connection. It is hydrostatically tested up to 1.5 times rated pressure for added assurance.

Q: How does the device ensure safety and durability during operation?

A: The SFI 110 is built from robust materials like cast iron, WCB, or stainless steel, and equipped with toughened borosilicate glass windows. It is hydrostatically tested above rated pressure and has rust-preventive coatings, ensuring operational safety and long-term durability.
