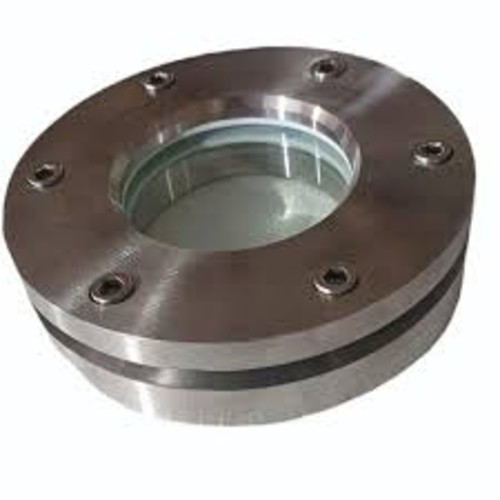

SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310

Name: SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310
Brand: Floin Valves and Instruments
Price: 7500.0 INR
Availability: InStock

Price 7500.0 INR/ Unit

Get a Price/Quote

MOQ : 1 Number

SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310 Specification

Features
Full-view design, direct tank wall observation, easy maintenance, suitable for harsh process environments

Display
Visual/Direct

IP Rating
Dependent on Mounting

Installation Type
Welded or Flanged Pad Mounted

Protection Level
Dependent on Installation Environment

Usage & Applications
Chemical, Pharmaceutical, Oil & Gas, Process Industries

Mounting Type
SIDE

Measuring Range
Not Applicable (Visual Observation)

Product Type
SIGHT GLASS

Operating Temperature
Up to 200C (typical; can vary as per design and gasket material)

Working Temperature
-10C to 200C

Pressure Type
Medium or Full Vacuum to Moderate Pressure

Diameter
Standard from 50 mm to 200 mm; custom sizes available

Application
Observation of liquids, gases, or solids in tanks, vessels, pipelines

Accuracy
Visual Inspection

Dimension (L*W*H)
Depends on Model and Size, typically round or oval pad type

Weight
Varies by size and material

Material
ASTM A105/Carbon Steel/SS304/SS316/Customized

Accessories

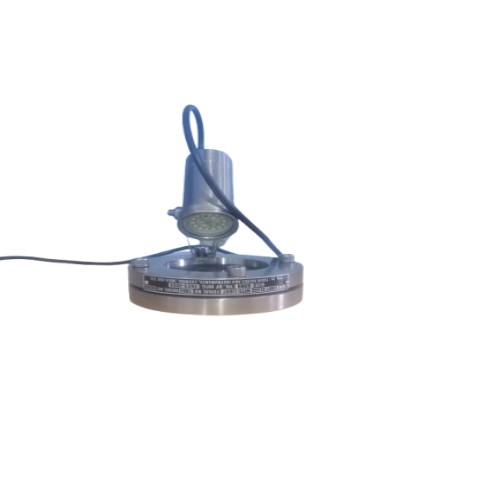

Optional with wiper, illumination, or protective grill

Gasket Material
PTFE, CAF, Viton, or As specified

Maximum Pressure
Up to 10 bar (depending on design)

Cleaning Options
Manual or CIP (Cleaning in Place) compatible

Shape
Round, Oval, or Custom Shapes Available

Finish
Polished, Painted, or as specified

Glass Thickness
Typically 8 mm to 20 mm (subject to pressure rating)

Body Material
Mild Steel, Stainless Steel 304/316, or Special Alloys

Glass Material
Borosilicate, Tempered, or Soda Lime Glass (as per application)

SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD)

Delivery Time
1 Week

Packaging Details
wooden Box

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
ISO CE

About SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310

This Sight Glass is designed to be welded directly onto a tank or other liquid-containing vessel. Standard Liquid Level Gauge units are furnished with a flat bottom. Upon request, the Sight Glass can be machined with a cylindrical radius to match the contour of the vessel. The Sight Glass are available in single or multiple section types .

Robust Materials and Customization

Choose from borosilicate, tempered, or soda lime glass for optimal chemical resistance and durability, paired with mild steel, stainless steel, or special alloys to match specific process requirements. Gasket options like PTFE, CAF, and Viton ensure compatibility with a wide range of media. Customization in shape, diameter, and finish provides flexible integration for any piping or vessel setup.

Designed for Harsh Process Environments

Engineered for full-view observation, the SG 310 sight glass is ideal for high-pressure and high-temperature conditions. Its easy maintenance features, CIP compatibility, and accessory options such as wipers and illumination enhance process visibility and safety, making it suitable for demanding industries including pharmaceuticals, chemicals, and oil & gas.

Flexible Installation and Reliable Performance

Offered in standard and custom sizes with either weld pad or flanged mounting, this sight glass provides straightforward installation on tanks, pipelines, or vessels. Its moderate to full vacuum and pressure handling, along with robust physical construction, ensure safe, uninterrupted visual process inspection over the equipment's lifecycle.

FAQ's of SIGHT GLASS/WELD PAD SIGHT GLASS-SG 310:

Q: How is the SG 310 Sight Glass installed in process systems?

A: The SG 310 can be installed either as a welded pad mounted directly onto the vessel wall or using a flanged connection for easier removal. The choice depends on your system's design requirements and maintenance preferences.

Q: What materials are available for the construction of SG 310 Sight Glass?

A: You can select from borosilicate, tempered, or soda lime glass for the viewing window, paired with a body made of mild steel, stainless steel 304/316, or special alloys. Gaskets can be made from PTFE, CAF, Viton, or custom materials based on media compatibility.

Q: When should I use a wiper or illumination accessory with my sight glass?

A: Wipers are recommended when observation ports are exposed to fouling or sediment, ensuring a clear view. Illumination is ideal for low-light environments or when detailed visual inspection is required inside opaque or large vessels.

Q: Where is the SG 310 Sight Glass most commonly applied?

A: This sight glass is frequently utilized in chemical processing, pharmaceutical manufacturing, oil & gas, and process industries for observing liquids, gases, or solids within pipes, tanks, and reactors requiring visual monitoring.

Q: What cleaning options are available for the SG 310 Sight Glass?

A: Depending on your hygiene requirements, SG 310 supports both manual cleaning and CIP (Cleaning in Place) systems, making it suitable for applications where frequent or automated cleaning is essential.

Q: How does the selection of gasket material affect temperature and chemical compatibility?

A: Gasket material, such as PTFE, CAF, or Viton, should be selected based on the operating temperature range and chemical environment to ensure leak-tight sealing and long service life under process conditions.

Q: What benefits does the SG 310 Sight Glass offer over other observation methods?

A: The SG 310 allows real-time, direct visual inspection of process media, reducing downtime and maintenance costs. Its robust design ensures reliability in harsh conditions, while accessories and customization enhance usability and safety for operators.
