SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130

Name: SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130
Brand: Floin Valves and Instruments
Price: 15000.0 INR
Availability: InStock

Price 15000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130 Specification

IP Rating
IP54

Installation Type
Inline Flanged or Screwed

Sensor Type
Mechanical Visual

Mounting Type
Horizontal / vertical

Connectivity Type
Inline

Usage & Applications
Suitable for liquid flow observation in process pipelines

Measuring Range
Visual Indication Only

Display
Rotating Wheel

Features
Robust design, Easy maintenance, Suitable for corrosive fluids, Glass viewing window

Output
Visual Indication

Protection Level
Weatherproof

Product Type
SIGHT FLOW INDICATOR

Operating Temperature
Up to 150C

Working Temperature
0C to 150C

Input
Mechanical / Visual

Pressure Type
Line Pressure

Diameter
15mm to 300mm (1/2 to 12)

Application
Pipe line flow observation, chemical, pharma, petroleum, water treatment

Accuracy
Visual Monitoring; Not used for precise measurement

Dimension (L*W*H)
Varies with line size

Weight
Varies with size and material

Material
CI/WCB/CF8/CF8M/Customized

Indicator Type
Rotating Wheel

Standard
Manufactured as per industrial standards

Flow Direction
Bidirectional

Maintenance
Minimal, replaceable glass

End Connection
Flanged (ANSI/DIN/BS) or Screwed (BSP/NPT)

Color
Blue / As per customer requirement

Max Pressure
Up to 10 bar (varies by model)

Viewing Window Material
Borosilicate Glass

Body Material
Cast Iron / Carbon Steel / Stainless Steel / PP / PVC

SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130 Trade Information

Minimum Order Quantity
1 Number

Payment Terms
Cash Against Delivery (CAD), Cash on Delivery (COD), Cash in Advance (CID)

Delivery Time
2 Week

Sample Available
No

Packaging Details
WOODEN BOX

Main Export Market(s)
Middle East

Main Domestic Market
All India

Certifications
ISO CE

About SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130

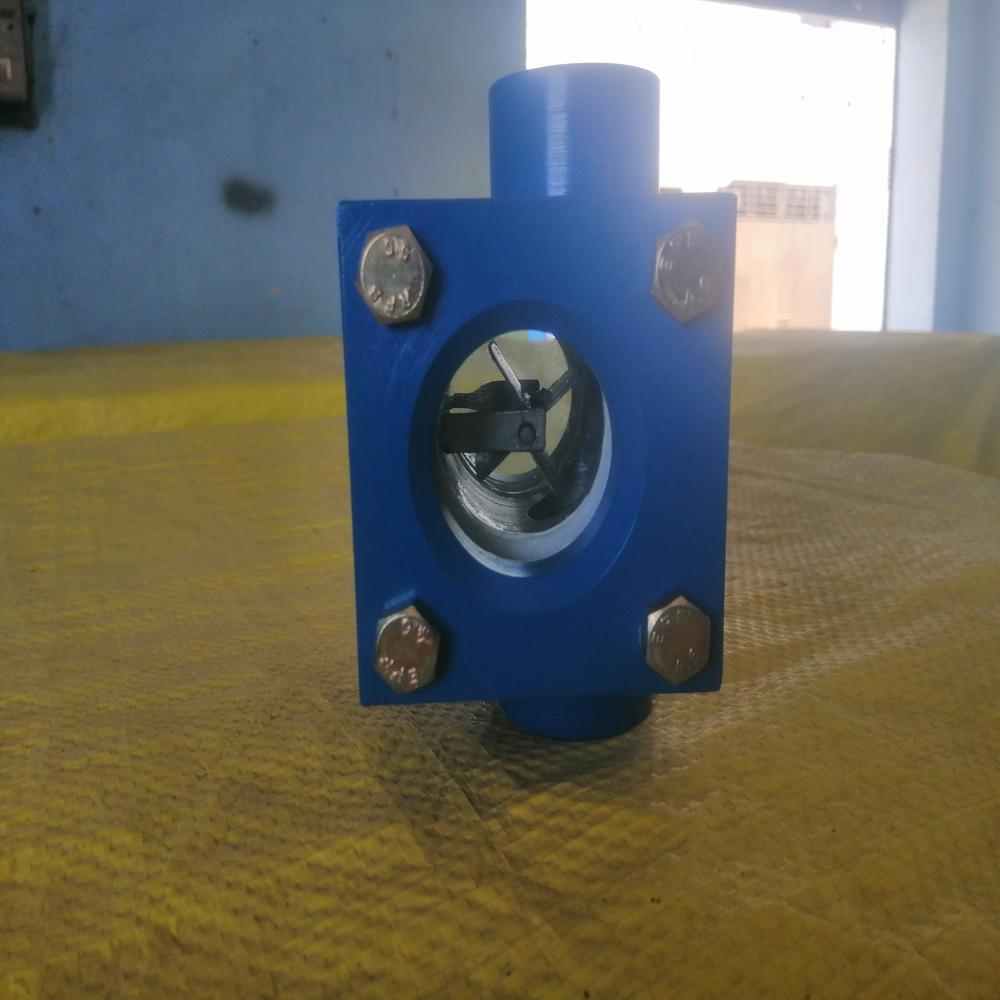

Rotating wheel (Rotary) type Sight Flow Indicators are suitable for installation in any position, but are particularly adapted to pipelines carrying dark opaque solutions, where the motion of the wheel is easily detected. This model is equally adapted to transparent solutions and gases. It is frequently installed where observations must be made from a distance.

Versatile Construction and Compatibility

The SFI 130 Sight Flow Indicator is engineered to suit a broad spectrum of industrial needs, with body materials such as cast iron, carbon steel, stainless steel, PP, or PVC ensuring compatibility with a variety of fluids-including corrosive ones. The flanged or screwed connections support installation in standard pipeline systems following ANSI, DIN, or BS specifications, making it easy to integrate across different facilities.

Reliable Visual Flow Monitoring

Equipped with a durable borosilicate glass viewing window and a rotating wheel indicator, the SFI 130 allows clear, immediate observation of liquid flow. Its mechanical visual sensor provides direct, unambiguous feedback without the need for electrical input, making it ideal for critical process applications that demand real-time verification of flow.

Industrial Applications and Benefits

The rotating wheel sight flow indicator is indispensable in chemical, pharmaceutical, petroleum, and water treatment plants. It provides a quick way to confirm liquid movement within process pipelines, minimizing downtime and enhancing safety. Its weatherproof IP54 design, wide temperature range, and minimal maintenance requirements make it a cost-effective solution for robust operations.

FAQ's of SIGHT FLOW INDICATOR ROTATING WHEEL TYPE-SFI 130:

Q: How does the rotating wheel sight flow indicator SFI 130 function in a pipeline?

A: The SFI 130 uses a mechanical rotating wheel visible through a borosilicate glass window to show the presence and movement of liquid within the pipeline. When liquid flows, the wheel spins, providing a clear, visual confirmation of flow direction and activity.

Q: What materials are available for the body and window of the SFI 130, and why are they important?

A: The body is available in cast iron, carbon steel, stainless steel, polypropylene, and PVC, ensuring chemical compatibility and strength for different applications. The viewing window is made from borosilicate glass to provide excellent clarity and resistance to thermal and chemical stresses.

Q: Where can the SFI 130 sight flow indicator be installed, and what are its mounting options?

A: The SFI 130 is suitable for inline installation in horizontal or vertical pipelines with either flanged (ANSI/DIN/BS) or screwed (BSP/NPT) end connections. This flexibility makes it adaptable to various industrial pipeline setups.

Q: What is the maximum operating pressure and temperature for this sight flow indicator?

A: Depending on the selected model and body material, the SFI 130 can withstand pressures up to 10 bar and operating temperatures ranging from 0C to 150C, accommodating most industrial fluid transfer processes.

Q: How is maintenance performed on the SFI 130, and what features make it user-friendly?

A: Maintenance is minimal and primarily involves replacement of the borosilicate glass window if needed. Its robust construction and easy-access design make servicing straightforward, reducing downtime and operational costs.

Q: Who would benefit from using the SFI 130 in their facility?

A: Facilities requiring visual monitoring of liquid flow, such as those in chemical processing, pharmaceuticals, petroleum, and water treatment, benefit from the SFI 130's durability, ease of use, and broad chemical compatibility.
