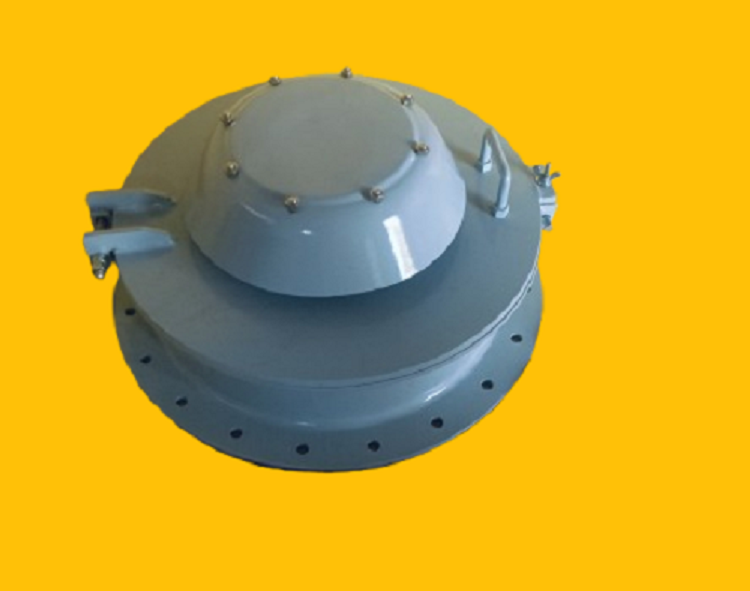

GAUGE HATCH -GH 760

Name: GAUGE HATCH -GH 760
Brand: Floin Valves and Instruments
Price: 35000.0 INR
Availability: InStock

Price 35000.0 INR/ Piece

Get a Price/Quote

MOQ : 1 Number

GAUGE HATCH -GH 760 Specification

Structure
Flanged or Welding Neck with Hinged Cover, Gasketed Sealing

Material
Aluminium Alloy, ASTM A216 Gr. WCB, Stainless Steel (304/316/316L)

Size
100 TO 300 NB

Power
Manual (Non-electric)

Pressure
Up to 10 kg/cm2 (Maximum)

Product Type
GAUGE HATCH

Media
Liquids and Gases

Working Temperature
-10C to +80C (Standard) / Up to 200C (On Request)

Port Size
Available in 2, 3, 4, 6 (Custom sizes available)

Color
BLUE

Surface
Painted

Shape
Round/Rectangular (as required)

Application
For gauging, sampling, and inspection on tanks/vessels

Accessories
Padlock Provision, Sampling Trough, Level Indicator (Optional)

Sealing
Viton, Teflon, EPDM, Neoprene Gaskets (Depending on Process)

Compliance
Designed as per API/IS Standards

Type
Gauge Hatch (GH-760 Series)

Opening Mechanism
Quick Release, Self-Closing, Spring Loaded Option

Inspection Window
Optional Acrylic or Toughened Glass View Port

Mounting
Horizontal or Vertical on Tank Top/Side

Size Range
50 mm to 150 mm (2" to 6" Nominal Bore)

GAUGE HATCH -GH 760 Trade Information

Minimum Order Quantity
1 Number

Supply Ability
2 Per Week

Delivery Time
2 Week

Packaging Details
WOODEN PACKING

Main Export Market(s)
Middle East

About GAUGE HATCH -GH 760

A gauge hatch works as a sealed access port on storage tanks, using a foot pedal for hands-free opening to manually measure liquid levels or take samples, while its self-closing, pressure-sensitive design (with weighted pallets or seals) automatically reseals to maintain tank integrity, preventing vapor loss and acting as an emergency pressure/vacuum relief to protect the tank from deformation.

Versatile Sealing and Materials

The GH 760 gauge hatch comes with a range of sealing options, including Viton, Teflon, EPDM, and Neoprene gaskets, allowing you to choose the best fitting for your process requirements. Its construction from Aluminium Alloy, ASTM A216 Gr. WCB, or stainless steel ensures compatibility with various media, including liquids and gases.

Convenient Operation and Safety

Featuring a quick-release, self-closing, and spring-loaded mechanism, the GAUGE HATCH - GH 760 is designed for safe and efficient access. Optional padlock provisions further enhance security. Its flange or welding neck design with a hinged, gasketed cover ensures reliable sealing and ease of use.

Flexible Installation and Customization

The hatch is suitable for both horizontal and vertical mounting on tank tops or sides. With a choice of round or rectangular shapes and a size range from 50 mm to 150 mm, including custom options, the GH 760 adapts to a variety of tank designs. Optional acrylic or toughened glass inspection windows, sampling troughs, and level indicators are available to meet specific application needs.

FAQ's of GAUGE HATCH -GH 760:

Q: How does the quick-release and self-closing mechanism work in the GH 760 gauge hatch?

A: The GH 760 features a spring-loaded, quick-release mechanism that allows users to open the hatch swiftly for inspection or sampling. Once released, the cover self-closes to maintain a secure seal, enhancing safety and operational efficiency.

Q: What gasket materials are available, and how should I select the right one for my process?

A: You can choose from Viton, Teflon, EPDM, or Neoprene gaskets based on the chemicals or media in your process. Selection depends on factors such as temperature, pressure, and media compatibility. Our technical team can assist you in determining the best option for your application.

Q: When should I use a GH 760 gauge hatch with an inspection window?

A: An inspection window (available in acrylic or toughened glass) is ideal when visual monitoring of tank contents is necessary without opening the hatch, allowing for enhanced safety and convenience.

Q: Where can the GH 760 gauge hatch be installed on a tank or vessel?

A: The GH 760 is designed for flexible mounting and can be installed horizontally or vertically on the tank top or side, depending on your operational requirements.

Q: What is the process for installing a GH 760 gauge hatch?

A: Installation involves securing the flanged or welding neck base to your tank, fitting the gasket, and attaching the hinged cover. Proper alignment and sealing are crucial to maintaining leak-tight performance.

Q: How is the GH 760 gauge hatch used during routine operations?

A: Operators use the hatch for safe gauging, sampling, or inspection of tank contents. The quick-release mechanism allows for prompt access, and the self-closing design supports prompt resealing to prevent product loss or contamination.

Q: What are the benefits of using the GH 760 gauge hatch?

A: The GAUGE HATCH - GH 760 offers secure, convenient, and versatile access for inspection and sampling. Its compliance with API/IS standards, robust material options, customizable features, and strong sealing capabilities make it a reliable solution for a wide range of industrial applications.
