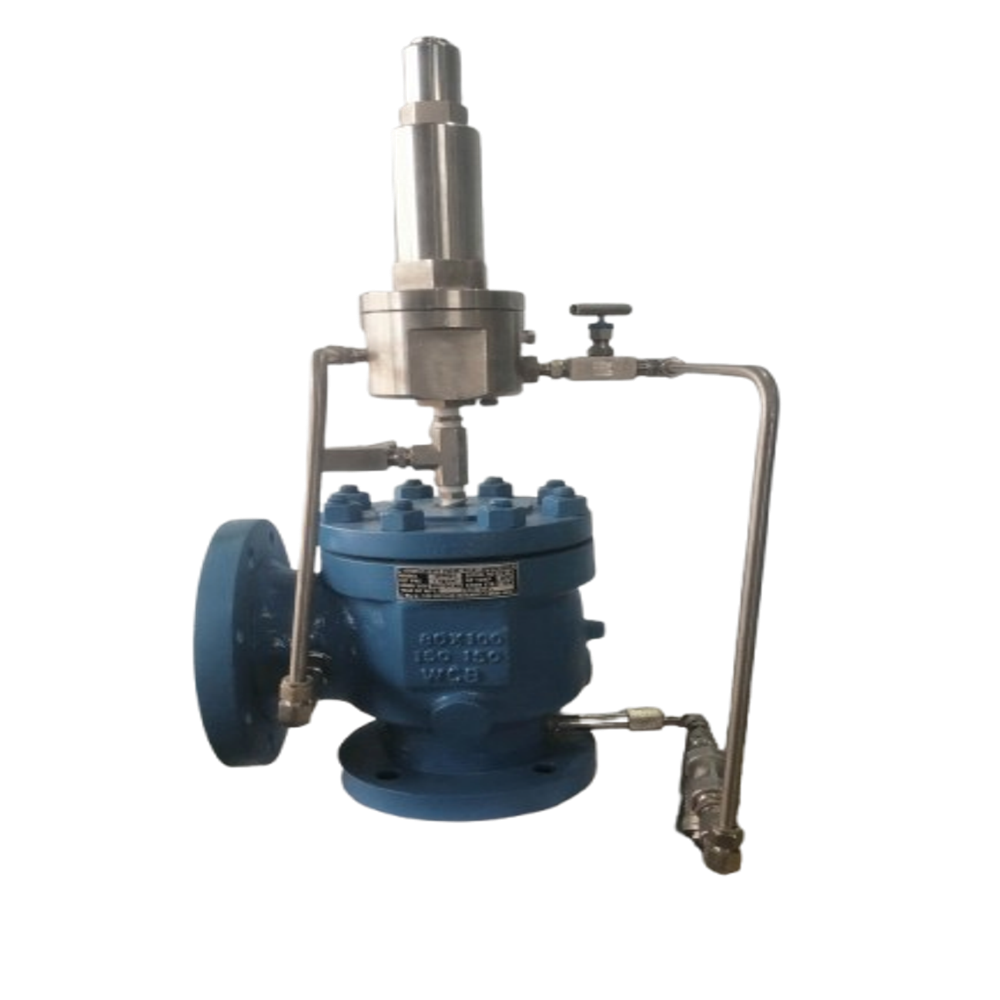

PILOT OPERATED SAFETY VALVE SVP601

Name: PILOT OPERATED SAFETY VALVE SVP601
Brand: Floin Valves and Instruments
Price: 150000.0 INR
Availability: InStock

Price 150000.0 INR/ Number

Get a Price/Quote

MOQ : 1 Number

PILOT OPERATED SAFETY VALVE SVP601 Specification

Connection Type
FLANGED

Valve Type
PILOT OPERATED

Material
CI/WCB/CF8/CF8M

Structure
Pilot

Usage
Industries

Type
SAFETY VALVE

Size
25NB TO 300 NB

Height
75 Centimeter (cm)

Product Type
PILOT OPERATED SAFETY VALVE

Media
Gas, Water, Oil, Acid

Width
40 Centimeter (cm)

Length
40 Centimeter (cm)

Disc
SS

PILOT OPERATED SAFETY VALVE SVP601 Trade Information

Minimum Order Quantity
1 Number

Supply Ability
2 Per Month

Delivery Time
2 Days

Sample Available
No

Packaging Details
WOODEN BOX

Certifications
ISO AND CE

About PILOT OPERATED SAFETY VALVE SVP601

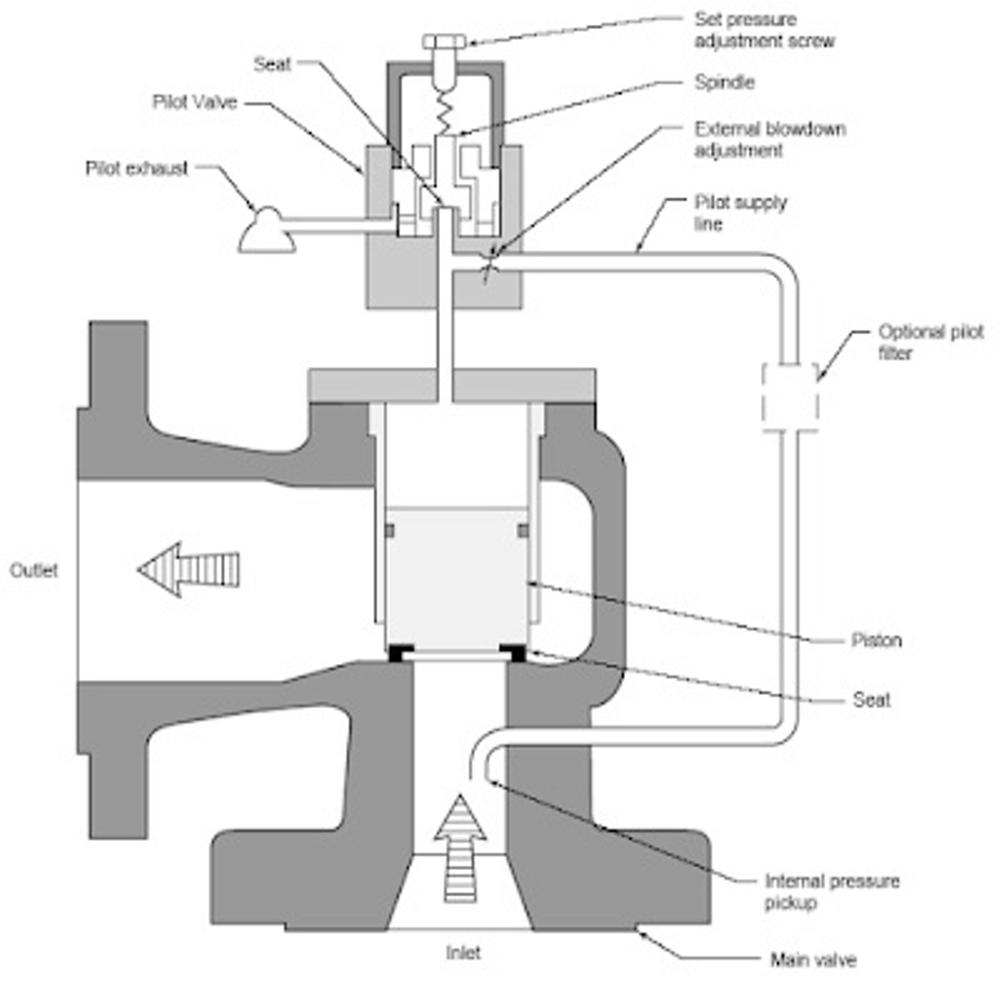

A Pilot operated safety valve is controlling the opening and closing of the main valve. The pilot valve is a direct loaded safety valve that responds to be system pressure and transmits it to the dome of the main valve. The main valve is held closed by the pressure above its disc or piston and opens when the pilot valve releases the pressure.

CATEGORIES OF SAFETY VALVES

Spring loaded safety valves

Spring-loaded safety valves are one of the main types of safety valves in which the closing force or spring force is applied by a spiral spring. How does a spring-loaded safety valve work? Safety valves are designed to open and release excess pressure from vessels or equipment and then close again.

Pilot operated safety valves

Pilot-operated valves are pressure relief valves that control the main valve's inlet and outlet port. They are similar to spring-loaded valves but are the best alternative solution for reaching the highest pressure and highest capacity. These valves offer excellent performance for overpressure protection

Dead Weight safety valves

Deadweight Safety valve consists of a valve seat where the pressure in the boiler or pressure vessel when it exceeds the normal working pressure lifts the valve seat with its weight. The excess pressure fluid therefore escapes through the pipe to the atmosphere, until the pressure reaches its normal value.
